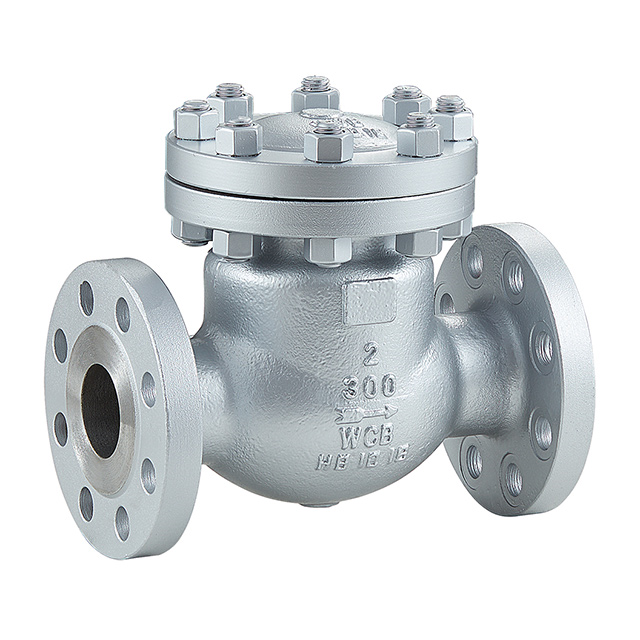

H44H check valve is suitable for pipelines under various operating conditions, such as pressure PN1.6~42.MPa(CL150-CL2500),operating temperature-46-425℃ petroleum, pharmaceutical, chemical fertilizer, electric power industry and other working conditions of the pipeline, to prevent the backflow of media.
Flange connection lifting check valve's main structural features are as follows:
1.Reasonable product structure,reliable sealing,excellent performance and beautiful apperance;
2. The surface welding Co base hard alloy, wear resistance, corrosion resistance, abrasion resistance, long service life
3. The built-in pin shaft structure reduces the leakage point and ensures reliable use
4. When the pressure is ≥ 16.0mpa, the valve cavity adopts self-tightening sealing structure. The higher the medium pressure is, the better the sealing performance will be.
5. The material, flange and butt welding end size of the parts can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.
Pressure and temperature rating: GB/T 12224
Structure length: GB/T 12221, GB/T 15188
Flange type dimensions: GB/T 9113, JB/T 79
Butt weld end connection: GB/T 12224
Inspection and test: JB/T 9092 GB/T13927
Main material: carbon steel, stainless steel, alloy steel
Nominal size: NPS 1 "~ NPS 48" DN25 ~ DN1200
Pressure range: CL150 ~ CL2500 PN10 ~ PN420
Operating temperature: -196℃ ~ +600℃
Application: applicable to petroleum, chemical, pharmaceutical, chemical fertilizer, power industry, low temperature and other conditions of the pipeline.
