API High Pressure Gate Valve

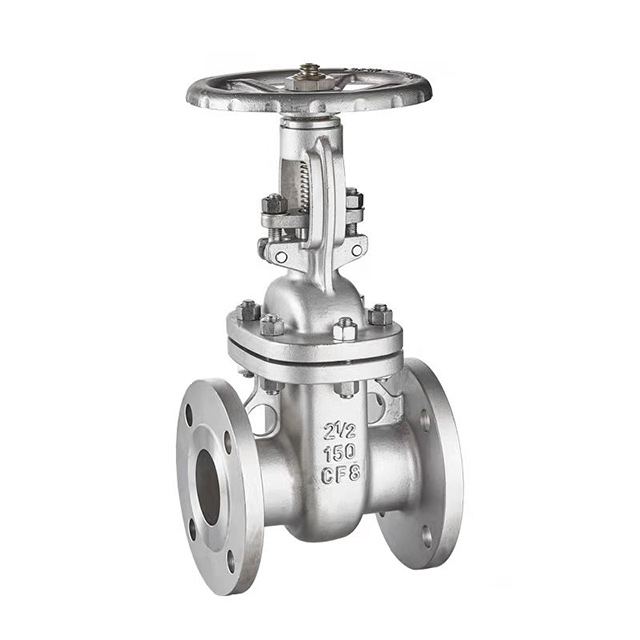

The API American Standard Power Station gate valve   is a manual and butt welded connection form. Open road wedge rigid single gate, the material of the seat sealing surface is carbide. The nominal pressure is 1500LB ~ 2500LB and the material of the valve body is carbon steel. It is high temperature and high pressure power station gate valve.

Structural Features:
High temperature gate valve, also known as power station valve, is mainly used in the pipelines of various systems of thermal power stations to cut off or connect the pipeline medium. Applicable medium: non-corrosive medium such as water and steam. Compared with other valve products, power station valves are characterized by high temperature and high pressure, and a unique self-sealing design. The higher the pressure, the more reliable sealing. Due to the performance and technical characteristics, the special working conditions make the product form a feature that can not be replaced by other products.
1. No friction when opening and closing. This function completely solves the problem that the traditional valve affects the sealing surface due to the friction between the sealing surfaces.
2. Top-mounted structure. The valve installed on the pipeline can be directly inspected and repaired online, which can effectively reduce the stopping of the device and reduce the cost.
3. Single seat valve design. Eliminating the problem that the medium in the valve cavity is affected by the abnormal pressure increase and affects the safety of use.
4. Low torque design. The valve stem with special structure design can be easily opened and closed with only a small handle.
5. Wedge seal structure. The valves is sealed by the mechanical force provided by the valve stem, pressing the wedge against the valve seat, so that the valve's tightness is not affected by the change in pipeline pressure difference, and the sealing performance is reliably guaranteed under various working conditions.
6. Self-cleaning structure of the sealing surface. When the gate is tilted away from the valve seat, the fluid in the pipeline passes through 360 degrees uniformly along the sealing surface of the gate, which not only eliminates the local erosion of the valve seat by the high-speed fluid, but also rushes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.

Design Standards:
Design Criteria: API 600 / ASME B16.34
Structure length ASME B16.10
Butt Weld Size ASME B16.5
Test and Inspection API 598
Pressure - Temperature: ASME B16.34

Performance parameters：

The main part material:

The main shape and connection dimensions:
